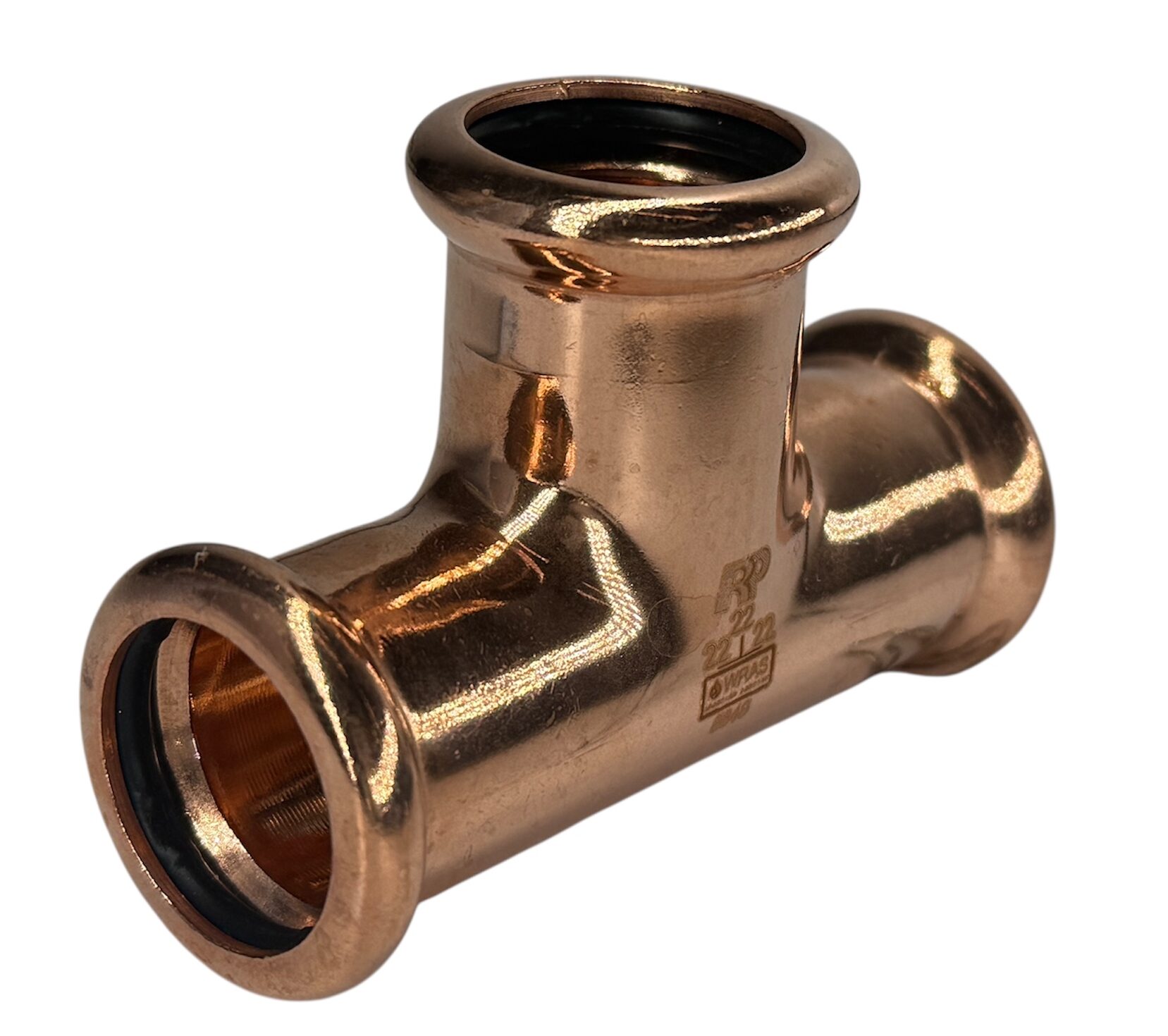

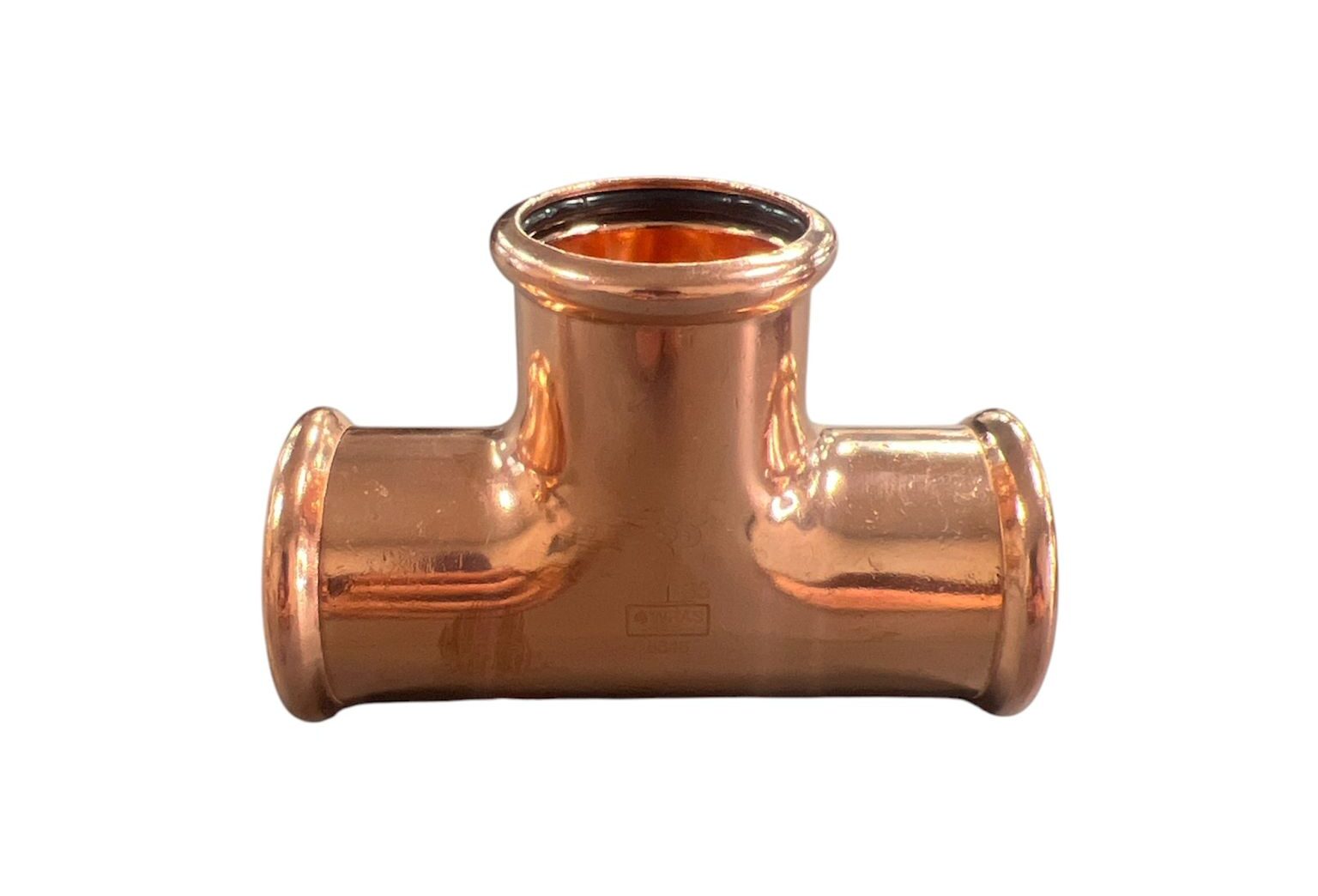

Copper Press Fit Equal Tee

Connection type – M Profile / M Press
Rubber Seal – Black EPDM
Material – Copper CW024A

Product	Product Code	Grams	Bag Content	Box Content	Operating Pressure	Operating Temperature
15x15x15mm Equal Tee	ETCP015	72.5	10	180	16bar	-25°C to +125°C
22x22x22mm Equal Tee	ETCP022	120.2	10	90	16bar	-25°C to +125°C
28x28x28mm Equal Tee	ETCP028	170	8	72	16bar	-25°C to +125°C
35x35x35mm Equal Tee	ETCP035	249	6	36	16bar	-25°C to +125°C
42x42x42mm Equal Tee	ETCP042	369	4	24	16bar	-25°C to +125°C
54x54x54mm Equal Tee	ETCP054	519	2	12	16bar	-25°C to +125°C
67x67x67mm Equal Tee	ETCP067	1149	1	6	16bar	-25°C to +125°C
76x76x76mm Equal Tee	ETCP076	1513	1	6	16bar	-25°C to +125°C
108x108x108mm Equal Tee	ETCP108	3750	1	2	16bar	-25°C to +125°C
