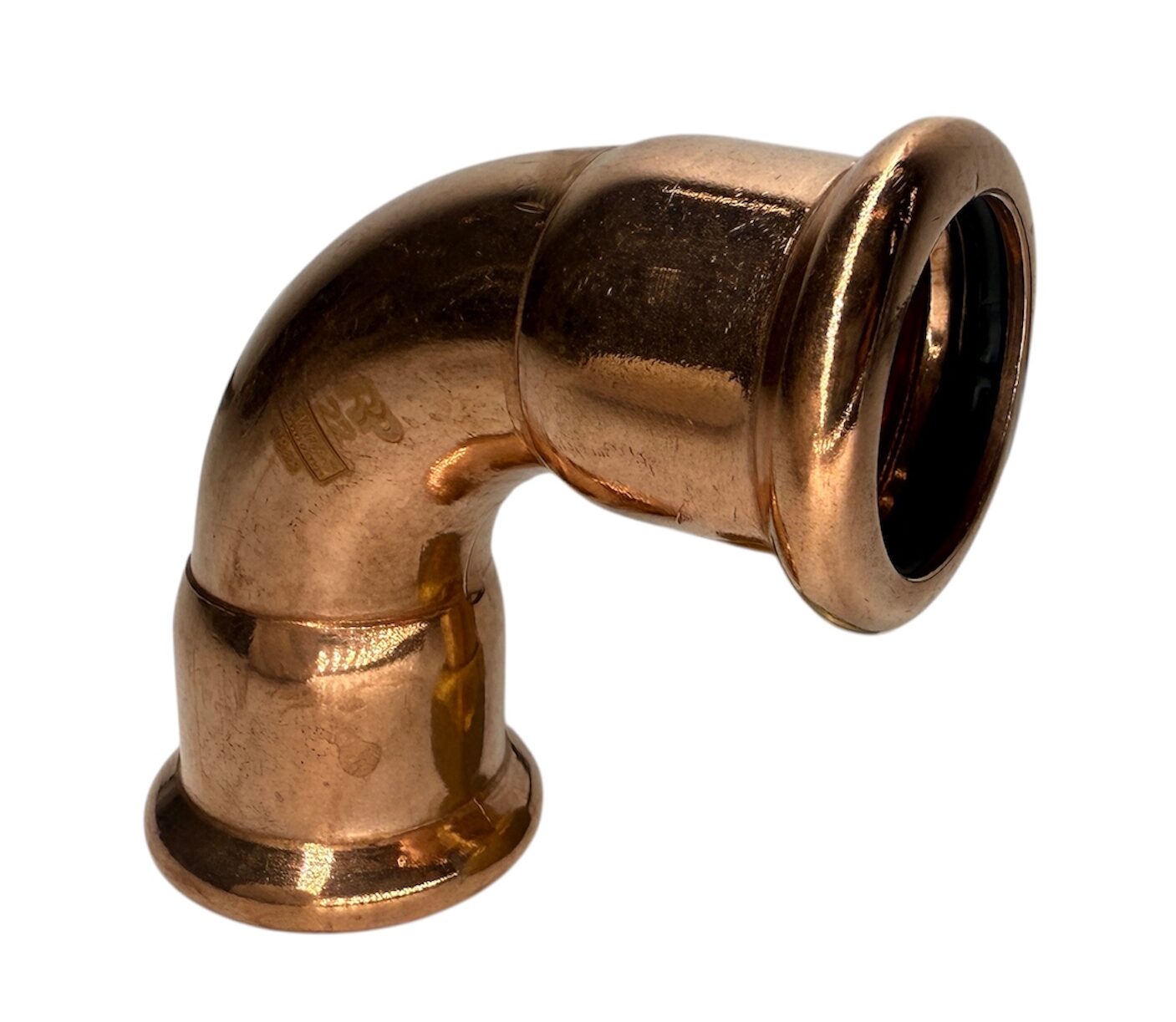

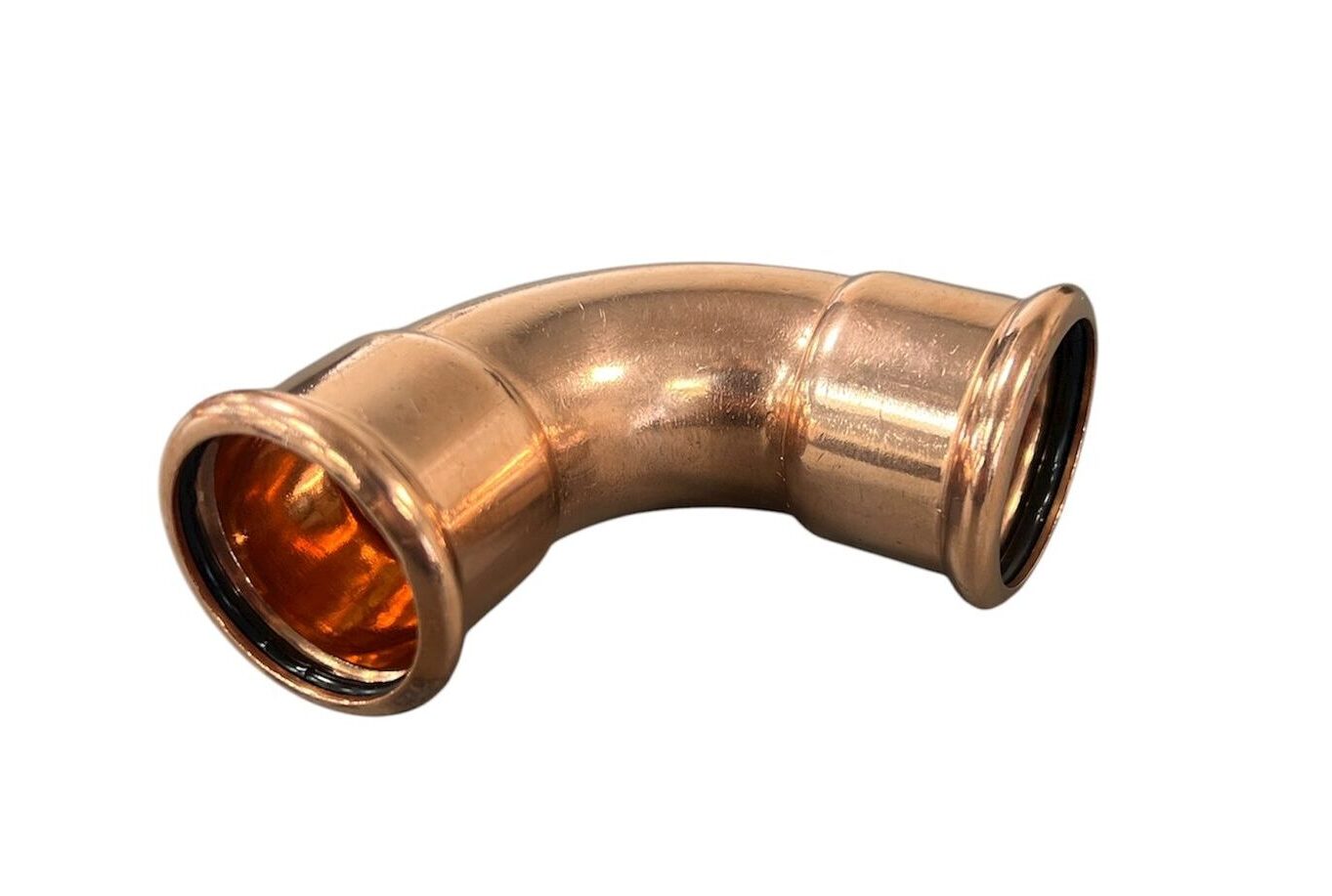

Copper Press Fit Elbow
Connection type – M Profile / M Press
Rubber Seal – Black EPDM
Material – Copper CW024A
| Product | Product Code | Grams | Bag Content | Box Content | Operating Pressure | Operating Temperature |
| 15mm Elbow | ECP015 | 45 | 10 | 180 | 16bar | -25°C to +125°C |
| 22mm Elbow | ECP022 | 76 | 10 | 90 | 16bar | -25°C to +125°C |
| 28mm Elbow | ECP028 | 118 | 10 | 90 | 16bar | -25°C to +125°C |
| 35mm Elbow | ECP035 | 163 | 6 | 54 | 16bar | -25°C to +125°C |
| 42mm Elbow | ECP042 | 245 | 4 | 24 | 16bar | -25°C to +125°C |
| 54mm Elbow | ECP054 | 381 | 2 | 12 | 16bar | -25°C to +125°C |
| 67mm Elbow | ECP067 | 801 | 1 | 6 | 16bar | -25°C to +125°C |
| 76mm Elbow | ECP076 | 1128 | 1 | 6 | 16bar | -25°C to +125°C |
| 108mm Elbow | ECP108 | 2430 | 1 | 2 | 16bar | -25°C to +125°C |
